Capping Receivers and Pads
Description

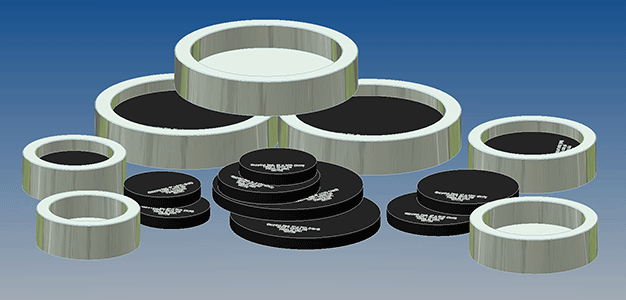

For meeting ASTM C1231 and AASHTO T22, the Capping Pad Receivers are machined from high strength steel and plated for a long, non-corrosive life. Elastomeric capping pads are available in three hardness grades, allowing them to distribute the test load and even out any imperfections in the concrete sample. They are extremely cost effective since they can be reused as many as 100 times.
Specs
Capping Pad Strengths are rated as follows:
| 50D (Soft) | 1500- 6000 psi (10-40 MPa) |
|---|---|
| 60D (Std) | 2500-7000 psi (17-50 MPa) |
| 70D (Hard) | 4000-12,000 psi (28-80 MPa) |
Ordering Info
Capping Receivers
| 63019 | Steel Receiver, 2" Round, Pair |
| 63023 | Steel Receiver, 2" Square Pair |
| 63020 | Steel Receiver, 3" Round, Pair |
| 63024 | Steel Receiver, 3" Square, Pair |
| 63021 | Steel Receiver, 4" Round, Pair |
| 63022 | Steel Receiver, 6" Round, Pair |
Capping Pads
| Hardness | Size | ||
|---|---|---|---|
| 50D | 60D | 70D | |
| 63001 | 63002 | 63003 | Pads, 2" Round, Pair |
| 63004 | 63005 | 63006 | Pads, 3" Round, Pair |
| 63016 | 63017 | 63018 | Pads, 3" Square, Pair |
| 63007 | 63008 | 63009 | Pads, 4" Round, Pair |
| 63011 | 63012 | 63013 | Pads, 6" Round, Pair |
Capping Pads, 2” Square
2” Square Capping Pad Strengths are rated as follows:
70D <4000 psi (27 MPa) 85D >4000 psi (27 MPa)
| Hardness | Size | |
|---|---|---|
| 70D | 85D | |
| 63015 | 63014 | Pads, 2” Square, 4/set |
