Auger Device

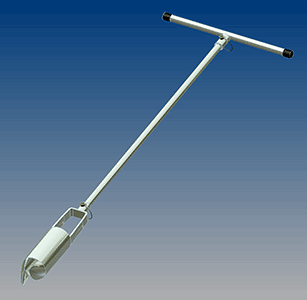

Basic Auger Set with Standard Auger Head
Description
D-clip Connected Components - Augers and components are offered in plated steel and stainless steel. The cutting blades are hard surfaced and flared to cut a borehole slightly larger than the head. The head assembly is heat treated.
Windowed augers are available to facilitate easy removal of stiff, sticky plastic clays.
Heads are offered in two nominal sizes: 3¼-in (76 mm) and 4-in (100 mm).
Photos

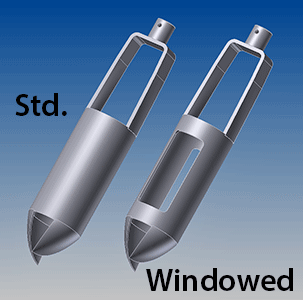

(L-R) Standard Auger Head, Windowed Auger Head

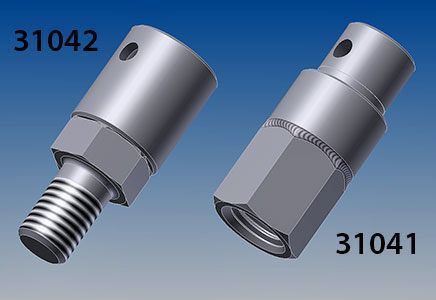

Auger Adapters
D-Clip
Ordering Info
| Connector Auger Sets | ||
|---|---|---|
| Zinc-Plated Steel | Stainless Steel | Description |
| 31023 | 31024 | Basic 3¼” Set: Includes (1) 3¼” Head; (1) 36” Extension; (1) Cross Handle |
| 31025 | 31026 | Extended 3¼” Set: Includes (1) 3¼” Head; (4) 36” Extension; (1) Cross Handle |
| 31031 | 31032 | Basic 4” Set: Includes (1) 4” Head: (1) 36” Extension; (1) Cross Handle |
| 31033 | 31034 | Extended 4” Set: Includes (1) 4” Head: (4) 36” Extension; (1) Cross Handle |
| Replacement Parts and Accessories | ||
| 31027 | 31028 | 3¼" Auger Head w/ D-clip |
| 31029 | 31030 | 3¼" Windowed Auger Head w/D-clip |
| 31035 | 31036 | 4" Auger Head w/ D-clip |
| 31037 | 31038 | 4" Windowed Auger Head w/ D-clip |
| 31007 | 31009 | 36" Extension w/ D-clip |
| 31008 | 31010 | 48" Extension w/ D-clip |
| 31011 | 31012 | Cross Handle Incl. w/ Sets Above |
| 31013 | 31014 | Cross Handle with Molded Grips |
| 31001 | 31002 | D-clip |
| Adapters for Pin to 5/8" × 11 Threaded (Other adapters available) | ||
| 31041 | Female D-clip to Nut 5/8” - 11 |
|
| 31042 | Male D-clip to Bolt 5/8” - 11 |
|
| Adapters for Pin to 5/8” - 11 Thread | ||
| Ratchet Head Cross Handle | ||
| 31047 | Ratchet Head Cross Handle | |
