Sieves
Description

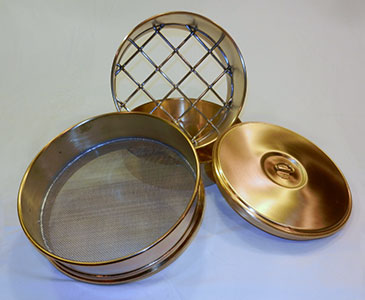

The sieves offered by CETEC, INC are manufactured to ASTM E11 standards. All frames and mesh cloths are available in brass or stainless steel. The most common is 8” or 12” diameter Brass frame with Stainless Steel mesh. If you desire another configuration, please specify when you call. Also, the standard frame size is Full Height, or 2” from mesh to the top of the frame. Half Height is available as well.
Ordering Info
| Alt. Designation | Alt. Designation | Std. Designation | ||
| 51018 | Sieve | No. 200 | 0.074 mm | 75 |
| 51017 | Sieve | No. 140 | 0.105 mm | 106 |
| 51016 | Sieve | No. 100 | 0.149 mm | 150 |
| 51015 | Sieve | No. 60 | 0.25 mm | 250 |
| 51014 | Sieve | No. 50 | 0.297 mm | 300 |
| 51013 | Sieve | No. 40 | 0.42 mm | 425 |
| 51012 | Sieve | No. 30 | 0.595 mm | 600 |
| 51011 | Sieve | No. 20 | 0.841 mm | 850 |
| 51010 | Sieve | No. 16 | 1.19 mm | 1.18 mm |
| 51009 | Sieve | No. 10 | 2 mm | 2.00 mm |
| 51008 | Sieve | No. 8 | 2.38 mm | 2.36 mm |
| 51007 | Sieve | No. 4 | 4.76 mm | 4.75 mm |
| 51003 | Sieve | 3/8 in | 9.51 mm | 9.5 mm |
| 51019 | Sieve | 3/4 in | 19 mm | 19.0 mm |
| 51020 | Sieve | 1 in | 25.7 mm | 25.0 mm |
| 51021 | Sieve | 1-1/2 in | 38.1 mm | 38.1 mm |
| 51004 | Sieve | 2 in | 50.8 mm | 50 mm |
| 51005 | Sieve | 3 in | 76.1 mm | 75 mm |
| 51022 | 8” Brass Cover w/ Handle | |||
| 51023 | 8” Brass Pan, FH | |||
